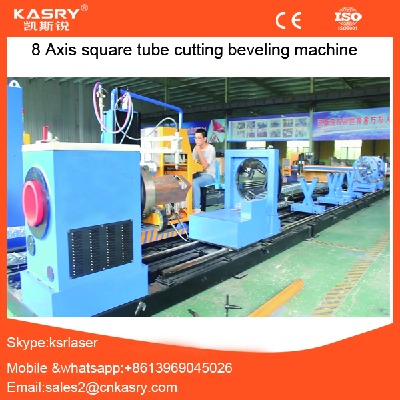

CNC rectangular tube plasma pipe cutting beveling machine for sale KR-XF8

Brief introduction of cnc pipe cutting machine

• CNC pipe profile cutting machine is special CNC equipment which is used for cutting metal pipe automatically.It can realize auto program and auto CNC nesting work for any complicated joint type of intertube,pipe,etc. and can cut any type welding bevel at one time.

• Suitable fo cutting cylinder branch,two or three layer saddle cuting of the main pipe .It is suitable for large quantities intersection pipe cutting .

• Industry :this product is widely used for steel structure,shipbuilding,bridge and heavy machine industries.

• Cutting material: low carbon steel, stainless steel and non ferrous metal , ect .Machine can be designed according to the different needs of users .

• It can cut round pipe .

Features of the cnc pipe cutting machine :

1. Equipped with professional control system for variety types of cuts, including tees, miters, saddles, centerline offsets, multiple intersections, elbow supports, gusset slots; round, rectangular, saw cut, overlapping pipe holes, re-pads with axial offsets and baseline or work point offsets, , and other types of intersecting cuts.

2. Precise casting parts and strict manufacture and test procedures ensure high accuracy, reliability and durability.

3. Integrated with specialized programming and computing modules for complicated large steel structure construction, it can generate CNC codes from Auto CAD drawings to save operators' and engineers' time. And these modules are compatible with IGES, DXF, SAT and STL files.

4. Automatic, servo driven height sensing system compensates vertical position for out-of-round pipe. In-feed and out-feed conveyors available for loading/unloading.

5. 3D operating interface for easy operation.

6.5 axis  perform cutting pipe profile ,can cut hole ,cut arc,bevel ,it can meet international welding standards AWS.

5 axis included X axis ,Y axis , Z axis , A axis ,B axis

X axis :pipe rotation axis , 360 ° freedom of rotation

Y axis :The torch moving along the pipe axial horizontal axis

Z axis :Torch up and down moving

A axis :Torch along the pipe Radial swing ,it can bevel on the branch pipe

B axis :Torch along the pipe axial plane swing , it can bevel on the main pipe

Functional :

1.Intersection cylindrical hole cutting of different directions and diameters on main pipe for vertical intersection between branch pipe and main pipe.

2.Intersection cylindrical end cutting on brand pipe for vertical intersection between branch pipe and main pipe.

3.Bevel cutting on Pipe end

4.Welding Elbow cutting on pipe

5.Branch pipe Intersection end cutting connected with ring main pipe

6.Square hole and branch hole cutting on pipe

7.Cutting off of pipes

Our Services

After-sales service

1. For training , both your side and our side all ok

2.We have a strong after sale team ,they can speal fluent english , when you met problems , can help you at the first time .If you need , also can go to your place and help you .

3.For installation , we have international engineer , can go to your place and help you .

Why choose us

1. Canadian Professionaloptimize CNC system has , AutoCAD version of the project design can be directly generated CNC machine code . Dimensional simulation operation, the node is expanded , long tube splitting , fittings optimization , oversized EGES DXF SAT and STL and other software compatibility .

 2 A userfriendly design , casting parts precision machining equipment to ensure highprecision, high stability , high life expectancy .

 3. One year warranty,free maintenance throughout service time.

 4.The software can be upgraded lifetime
