- Size: 14
- Place of Origin: China
- Brand Name: KASRY
- Model Number: KR-PL
- Weight: 2000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Machine introduction :

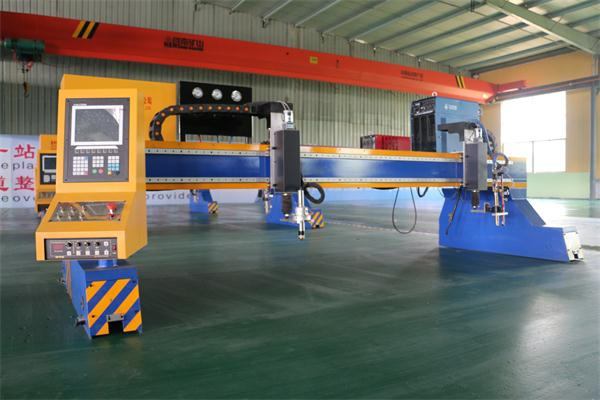

Gantry type cnc plasma flame cutting machine ,with gantry machine frame , can match plasma cutting torch and flame cutting torch , cut thick and thin metal plate .
Machine frame and machine cutting table are seperate ,it can guarantee the machine using life ,improve the cutting precision .
Machine configuration :
1-machine size 4000x10000mm
2-one group plasma one group flame ,effective working size 3150x8000mm
3-F2300B controller with U disk exchange the information
4-Australia Fastcam software , reduce the material waste
5-Japanese Panasonic servo motor
Optional device :
1-Air compressor ,Air dryer
2-Dust collector ,protect the staff health and environment
3-plasma flame consumables
4.Pipe rotary for pipe cutting

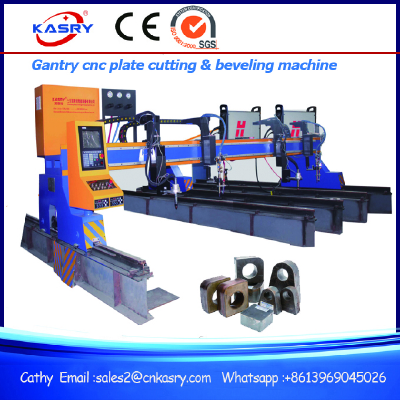

5-Bevel head for metal plate cutting and beveling
- Size: 14
- Place of Origin: China
- Brand Name: KASRY
- Model Number: KR-PL
- Weight: 2000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Technical parameters
Cutting Area | (2500- 7500mm) by (4000mm-20000mm)or customized | |
Input Power | 220 ± 10%V AC 50Hz /60 Hz For Servo Motors: 1400 W For Step Motors: 500 W | |
Cutting Modes | Plasma Cutting / Flame Cutting / Plasma Cutting Flame Cutting | |
Transmission Style | Rack & Gear | |
Drive Style | Servo Motors Double Sides Drive Step Motors Double Sides Drive | |
Torch Lift Distance | 200 MM | |
Torch & Number | One Plasma Torch / One Flame Torch / One Plasma Torch One Flame Torch | Two Flame Torches/One Plasma Torch One Flame Torch |
Plasma Cutting Thickness | Depend On Plasma source | |
FlameCutting Thickness | Piercing Cutting: 5-80 mm Edge Start: 5-150 mm | |
Torch height control | Plasma Automatic Torch Height Control / Flame Capacitance Torch Height Control | |
Cutting Speed | For Servo Motors: 0-10000 mm / min For Step Motors: 0-4000 mm / min | |
Cutting Table | Normal Cutting Table /work piece collect drawer cutting table / smoke and dust collector with work piece collect drawer cutting table.(We can supply drawing of the cutting table with the machine for free.) | |
