- Size: 46
- Place of Origin: china ,dezhou
- Brand Name: KASRY
- Model Number: KR-XF8
- Weight: 5000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

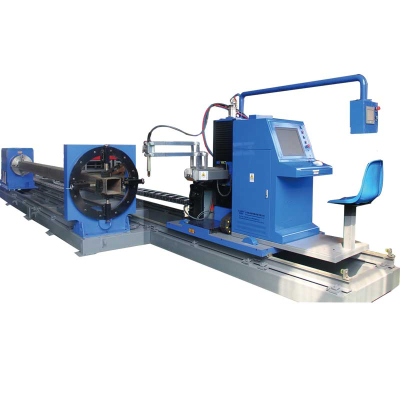

Features of cnc pipe tube cutting machine:
♥Kasry professional pipe optimization CNC system
♥support AutoCAD model design
♥support Tekla three-dimensional model
♥support pipe splitting \ pipe optimization \ node expansion \ left and right replacement and other functions
♥equipment design people-oriented, English interface is simple, advanced and reliable
♥equipment for long-term continuous processing, stable and reliable operation control.
Advantage of kasry software :
1-Good compability ,support AUTOCAD , TEKLA , 3D,3S,STCAD
2-First supplier in china market for square tube cutting beveling machine , sale quantity top rank of china
3-One time input the drawing model , generate the material budget chart ,clearly know each pipe diameter , cut process , weight , length ,can earlier prepare the material ,prevent waste
4-Optimization nesting
a;support twist angle nesting
b:support remainlung materials secondary nesting
remian material can achieve secondary nesting ,it can save the raw materials from 1%-2% .
5-After nesting can be one time generate the G code
6-With Rich graphics datebase , these are offer to customer for free
7-Support continous cutting
8-After you purchase the machine , software can be enjoyed upgarde lifetime for free
Configuration of the pipe tube cutting machine :
Model | KR-XF 8 axis all pipes CNC cutting machine |
Round Pipe | 50-630mm, can be customized |
Sqaure Tube | 50-400mm |
Rectangular | 50-400mm |
Cutting range | 6m/9m/12m |
Machine size | 12000x2200x2100mm |
Cutting method | Flame / plasma |
Cutting thickness | Flame :6-60mm Plasma :standard 2-14mm |
Flame cutting speed | 20-700mm/min |
Control system | Advantech industrial computer |
Plasma max.hole thickness | 14mm |
Plasma max.edge cutting thickness | 18mm |
Plasma cutting speed | 500-3500mm/min |
Plasma torch anti-collision protection system | Yes |
Driving method | servo |
software | KASRY PIPE apply software |
Working condition | |
Working pressure of compressed gas | Above 7mpa |
Required gas flow of plasma | 4500L/H |
Working environment | Ventilation, no concussion |
Power | 5KW((not include plasma source power) |
Types of gas | Acetylene Propane |
Details introduction of 8 axis :
Moving axis | Choose cutting axis | Range of activities |
Y1 axis : | Pipe rotary driving shaft | 360 ° free rotation |
Y2 axis : | Pipe driven rotation shaft | 360 ° free rotation |
X1 axis | The spindle box moves back and forth along the length of the tube | The maximum stroke 13000mm |
X2 axis | The trolley moves along the length of the tube | The maximum stroke 12000 mm |
A axis | The torch swings along the length direction of the pipe | ±45° |
B axis | The torch swings along the radial direction of the tube | ±45° |
Z axis : | Torch move up and down | Travel 320mm |
U axis | The trolley moves along the radial direction of the tube | Move back and forth 300mm |
Application of all pipes cutting machine :
1, Material :Carbon steel , stainless steel , alunimum , copper ect
2,Material type :Round pipe , Sqaure Tube ,Rectangular Tube
3, Industry :steel construction, shipbuilding, marine engineering, the elevator industry, building walls, bridges, towers and mechanical engineering industries.
Why choose us?
1. We specialized in the production and sales of CNC cutting machine,plate cutting machine , pipe cutting beveling machine , h beam cutting machine ect .
2. We have a professional sales and service team , can provide the installation and training
3.Our products, quality guarantee,CE certificate, they are exported to more than 40 countries around the world, Such as Hungary ,Poland ,Spain ,India ,Belgium. French. Indonesia. Korean. Australia . Romania. Russia. Iraq and so on.
4-Frame and software all Kasry own brand , delivery time and quality have enough guarantee
5-Two years global warranty
FAQ
1. Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day.
If you need our engineer go to your factory installation and training , that all no problems
3. What's the quality of your products?
For the machine frame all made by ourself , quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
4. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
5. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas. (2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
6. What's the leading time after payment?
The leading time is according to your ordered products and quantity.Gantry cutting machine need 15 days ;pipe cutting machine need 30 days ;h beam cutting machine need 60 days .It should be confirmed by the communication with our sales staff.
7. What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement
- Size: 46
- Place of Origin: china ,dezhou
- Brand Name: KASRY
- Model Number: KR-XF8
- Weight: 5000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
No. | Items | Parameters |
1 | Cutting diameter | Φ= 50-630mm |
2 | Length | 6m/9m/12m |
3 | Plasma cutting thickness | it depand on the plasma power |
4 | Flame cutting thickness | 6-60mm thickness |
5 | Plasma power | domestic and imported for optional |
6 | Requirments of angle | ≤1% |
7 | Cutting speed | 10~2000mm/min |
8 | Moving speed | 10~6000 mm/min |
9 | Cutting torch wave angle of axis | α=±45° |
10 | Cutting torch wave angle of diameter | β=±45° |
11 | Can be cutting pipe max. Weight | 5000Kg |
