- Size: 46
- Place of Origin: china ,dezhou
- Brand Name: KASRY
- Model Number: KR-XY5
- Weight: 5000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

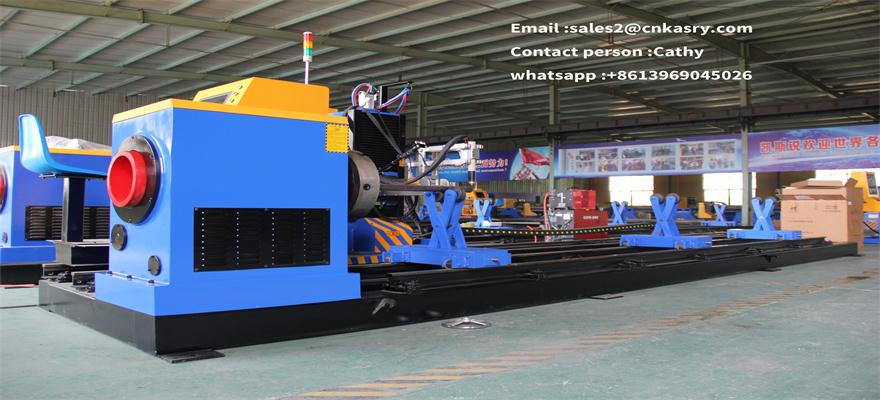

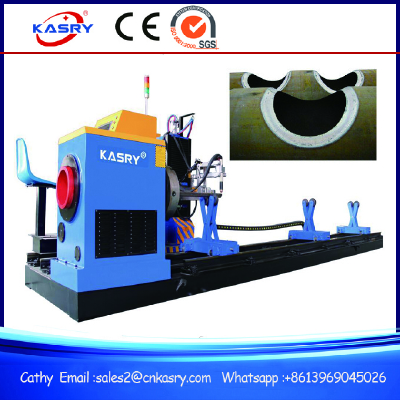

Features of pipe cutting machine:
1,Adopt welding platform, heavy rail and improve the overall bearing weight, humane design human-computer exchange more convenient and reasonable, stable operation and increased life expectancy.
2,Independent research and development to optimize CNC pipe systems, AutoCAD version of the engineering design can generate standard G code directly, three-dimensional simulation of the operation, node expansion, long split pipe, fittings optimization, oversized EGES DXF SAT and STL software compatibility and upgrade free for lifetime , can be modified according to user needs.
3. Taiwan Advantech industrial computer can be programmed directly on the machine. Using menu type programming to select input cutting parameter , such as diameter, wall thickness, bevel angle deviation compensation data. By KASRY professional pipe cutting applications for a seamless connection.
Configuration of pipe cutting machine :
| Model | KR-XY Round pipe CNC cutting machine |
| Diameter | 600mm |
| Cutting range | 6/9/12m length can be customized |
| Machine size | 12800mm*2000*2100mm |
| Cutting method | Flame / plasma |
| Cutting thickness | Flame :6-60mm Plasma :standard 2-14mm |
| Flame cutting speed | 20-700mm/min |
| Control system | Kasry Control System with Advantech industrial computer |
| Plasma max.hole thickness | 14mm |
| Plasma max.edge cutting thickness | 18mm |
| Plasma cutting speed | 500-3500mm/min |
| Plasma torch Anti-collision protection system | Yes |
| Driving method | servo |
| software | KASRY PIPE apply software |
| Working condition | |
| Working pressure of compressed gas | Above 7mpa |
| Required gas flow of plasma | 4500L/H |
| Working environment | Ventilation, no concussion |
| Power | 5KW((not include plasma source power) |
| Types of gas | Acetylene Propane |
Advantage of the kasry software :
1-Good compability ,support AUTOCAD , TEKLA , 3D,3S,STCAD
2-First supplier in china market for square tube cutting beveling machine , sale quantity top rank of china
3-One time input the drawing model , generate the material budget chart ,clearly know each pipe diameter , cut process , weight , length ,can earlier prepare the material ,prevent waste
4-Optimization nesting
a;support twist angle nesting
b:support remainlung materials secondary nesting
remian material can achieve secondary nesting ,it can save the raw materials from 1%-2% .
5-After nesting can be one time generate the G code
6-With Rich graphics datebase , these are offer to customer for free
7-Support continous cutting
8-After you purchase the machine , software can be enjoyed upgarde lifetime for free .
Details introduction of 5 axis :
| Moving axis | Choose cutting axis | Range of activities |
| Y axis : | Pipe driven rotation shaft | 360 ° free rotation |
| X axis | The trolley moves along the length of the tube | The maximum stroke 6000mm |
| A axis | The torch swings along the length direction of the pipe | 45 degree |
| B axis | The torch swings along the radial direction of the tube | 45 degree |
| Z axis | Torch move up and down | 320mm |
Application :
Material :carbon steel, stainless steel and other materials
Material type :Round Pipe
Industry :widely used in pressure vessel pipes, pipe processing, network structure, steel structure , marine engineering, oil pipelines and other industries.
Why choose us?
1. We specialized in the production and sales of CNC cutting machine,plate cutting machine , pipe cutting beveling machine , h beam cutting machine ect .
2. We have a professional sales and service team , can provide the installation and training
3.Our products, quality guarantee,CE certificate, they are exported to more than 40 countries around the world, Such as Hungary ,Poland ,Spain ,India ,Belgium. French. Indonesia. Korean. Australia . Romania. Russia. Iraq and so on.
4-Frame and software all Kasry own brand , delivery time and quality have enough guarantee
5-Two years global warranty
FAQ
1. Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2.Warranty ?
2 years global guarantee
3.Delivery time ?
30 days after you pay the payment ,if have stock can delivery directly ,it need have chance .
4. What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement
Welcome to your inquiry , we will recommend the most suitable machine and improve your working efficiency .
Contact :Cathy
Tel : 86 13969045026
- Size: 46
- Place of Origin: china ,dezhou
- Brand Name: KASRY
- Model Number: KR-XY5
- Weight: 5000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
No. | Items | Parameters |
1 | Cutting diameter | Φ= 50-630mm |
2 | Length | 6m/9m/12m |
3 | Plasma cutting thickness | it depand on the plasma power |
4 | Flame cutting thickness | 6-60mm thickness |
5 | Plasma power | domestic and imported for optional |
6 | Requirments of angle | ≤1% |
7 | Cutting speed | 10~2000mm/min |
8 | Moving speed | 10~6000 mm/min |
9 | Cutting torch wave angle of axis | α=±45° |
10 | Cutting torch wave angle of diameter | β=±45° |
11 | Can be cutting pipe max. Weight | 5000Kg |
